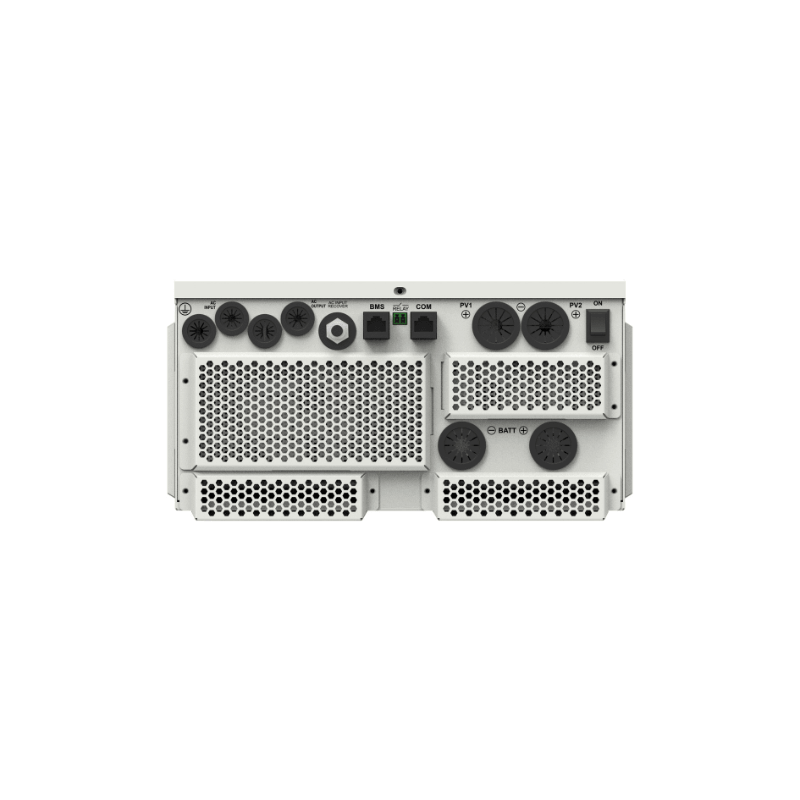

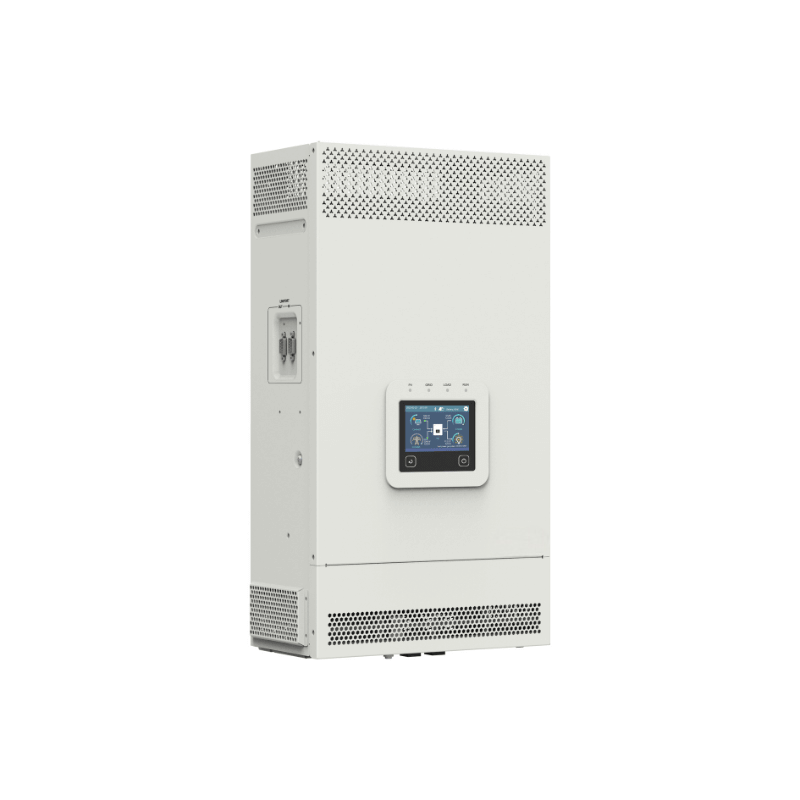

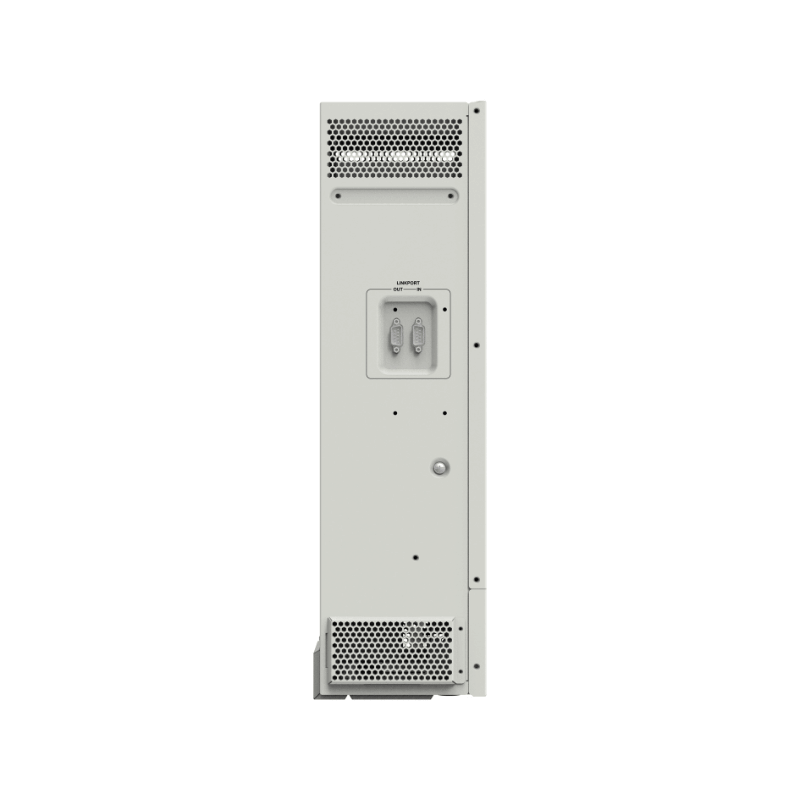

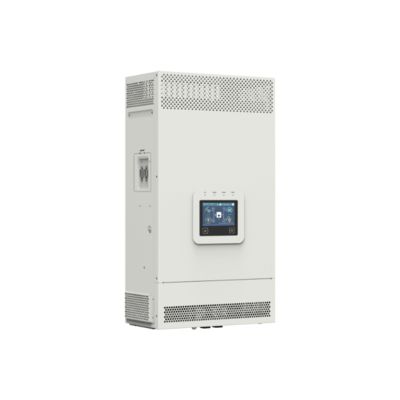

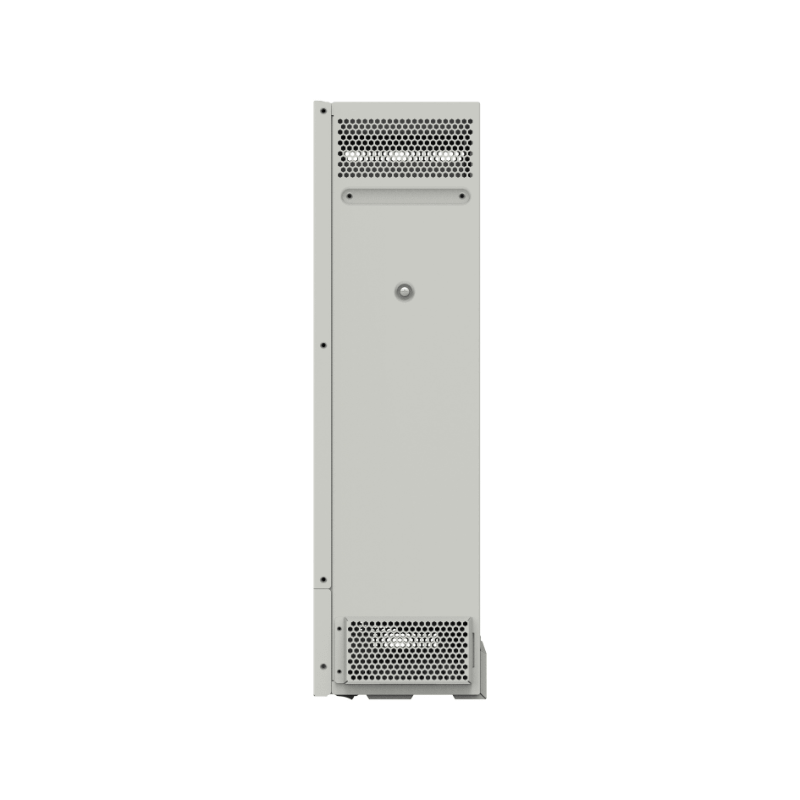

Model |
KR3542-0650P20/C |
|
Utility input |
|
|
Utility Input Voltage |
176VAC to 264VAC (Default), 90VAC to 285VAC (Configurable) |
|
Utility Input Frequency |
45Hz to 65Hz |
|
Maximum Utility Charging Current |
60A |
|
Switch Response Time |
Switch Response Time – Inverter to Utility: 10ms |
|
Inverter output |
|
|
Inverter Rated Power (@30℃) |
3500W |
|
3-second Transient Surge Output Power |
7000W |
|
Inverter Output Voltage |
220/230VAC±3% |
|
Inverter Frequency |
50/60Hz±0.2% |
|
Output Voltage Waveform |
Pure sine wave |
|
Load Power Factor |
0.2–1(VA ≤ Rated output power) |
|
THDu (Total Harmonic Voltage Distortion) |
≤3% (48V resistive load) |
|
Maximum Load Efficiency |
0.92 |
|
Maximum Inverter Efficiency |
0.94 |
|
Maximum Main Load |
3500W |
|
Maximum Second Load |
3500W |
|
Main Output Cut-Off Voltage |
Equal to “UVW (Under Voltage Warning Voltage)” |
|
Second Output Cut-Off Voltage |
Equal to “LVD (Low Voltage Disconnect Voltage)” |
|
Dual Output Recovery Voltage |
Equal to “LVR (Low Voltage Reconnect Voltage)” |
|
Solar controller |
|
|
PV Maximum Open-circuit Voltage |
500V (At minimum operating environment temperature); |
|
MPPT Voltage Range |
85V to 450V |
|
Number of MPPTs |
1 |
|
PV Maximum Input Current |
One way, 16A/way |
|
PV Maximum Short-circuit Current |
One way, 18A/way |
|
PV Maximum Input Power |
4200W |
|
PV Maximum Charging Current |
60A |
|
MPPT Maximum efficiency |
≥99.5% |
|
Battery |
|
|
Battery Rated Voltage |
48VDC |
|
Battery Work Voltage Range |
40.8VDC to 64.0VDC |
|
Battery Maximum Charging Current |
60A |
|
Others |
|
|
No-load Losses |
≤0.8A |
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input |
|
|
Standby Current |
≤0.6A |
|
Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input |
|
|
Communication with BMS |
RS485 |
|
Communication with Portal |
RS485 |
|
Parallel Function |
Yes, 12 units in standard, 16 units at most |
|
Work Temperature Range |
-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately) |
|
Storage Temperature Range |
-25℃ to +60℃ |
|
Enclosure |
IP20 (With ANTI-DUST KIT) |
|
Relative Humidity |
< 95% (N.C.) |
|
Altitude |
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately) |
|
Certifications and Standards |
IEC 62109-1, IEC 62109-2, IEC 61683, IEC 62368 |
|
Mechanical parameters |
|
|
Dimension (Length x Width x Height) |
534mm × 300mm × 163mm |
|
Mounting size (Length x Width) |
512mm × 245mm |
|
Mounting hole size |
Φ9mm/Φ10mm |
|
Net Weight |
12.7Kg |
